Using WP-United to Integrate WordPress with PHPBB3.0

PHPBB is a forum developed in PHP that provides support for multiple database engines, user groups, plugins and various notification options, etc. This article will take you through a guide to integrate WordPress with PHPBB version 3.0.x, so that the user (who logged-in WordPress already) can automatically log-in to PHPBB forum (same in the case of log-out). If a user registers for WordPress, at the same time a user account will also be created in PHPBB forum and vice versa.

In order to integrate WordPress with PHPBB3.0, you need to have WP-United WordPress Plugin, WP-United MOD for PHPBB3.0 and FTP Access. Follow the steps mentioned below while modifying PHPBB forum files:

1- Install WP-United plugin in your WordPress. Once installation is done, activate the plugin. Now go to plugin Dashboard and select PHPBB installation config.php file.

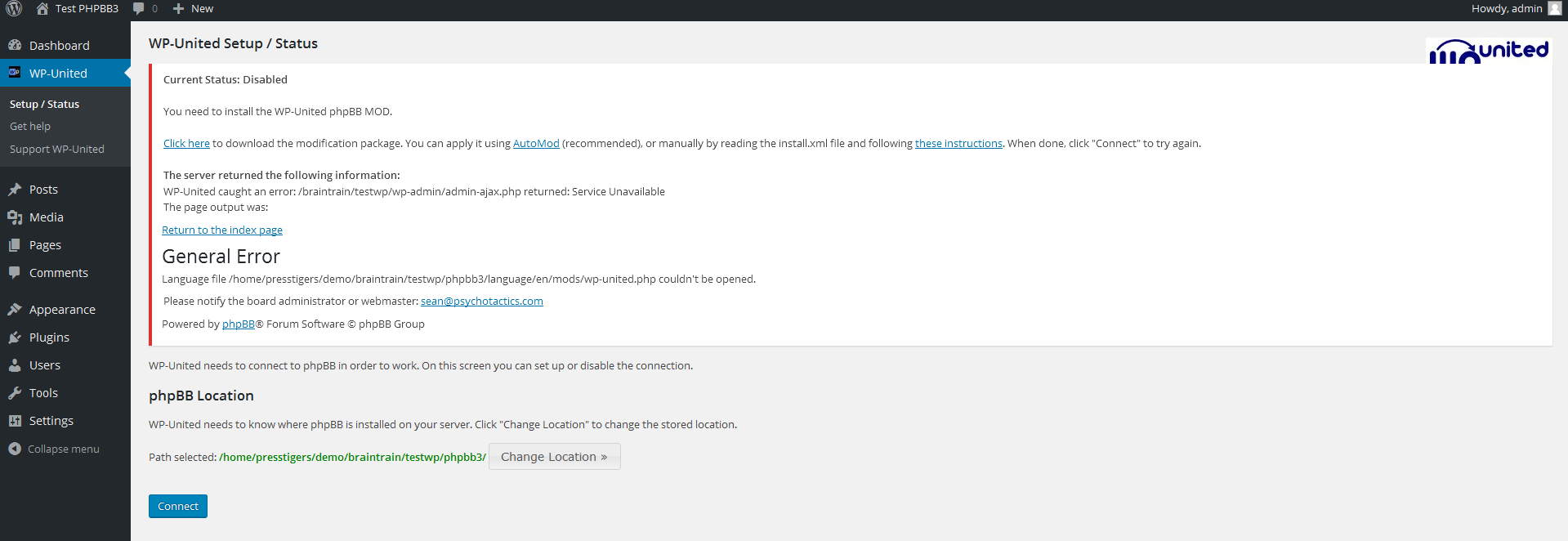

Using WP-United to Integrate WordPress with PHPBB3.0-1

2- You need to install WP-United MOD in PHPBB manually by downloading it from Github. Once it is downloaded, you can modify or add the following files in PHPBB forum:

  1. phpbb_forum_root/includes/functions_content.php
  2. phpbb_forum_root/memberlist.php
  3. phpbb_forum_root/viewtopic.php
  4. phpbb_forum_root/includes/functions.php
  5. phpbb_forum_root/includes/functions_user.php
  6. phpbb_forum_root/includes/acp/acp_main.php
  7. phpbb_forum_root/style.php
  8. phpbb_forum_root/styles/prosilver/template/overall_header.html
  9. phpbb_forum_root/styles/prosilver/template/overall_footer.html
  10. phpbb_forum_root/styles/prosilver/template/memberlist_view.html
  11. phpbb_forum_root/styles/prosilver/template/viewtopic_body.html
  12. phpbb_forum_root/styles/prosilver/template/editor.js
  13. phpbb_forum_root/styles/prosilver/theme/common.css

After that, include the following files in MOD:

  1. root/includes/hooks/hook_wp-united.php
  2. root/language/
  3. root/styles/
  4. root/wp-united/

Now copy /root/includes/hooks/hook_wp-united.php file to phpbb_forum_root/includes/hooks/hook_wp-united.php, /root/language/ file to phpbb_forum_root /language/, /root/styles/ file to phpbb_forum_root/styles/ and /root/wp-united/ file to phpbb_forum_root/wp-united/ respectively. After this, refresh the WP-United Admin Dashboard page and click on Connect button.

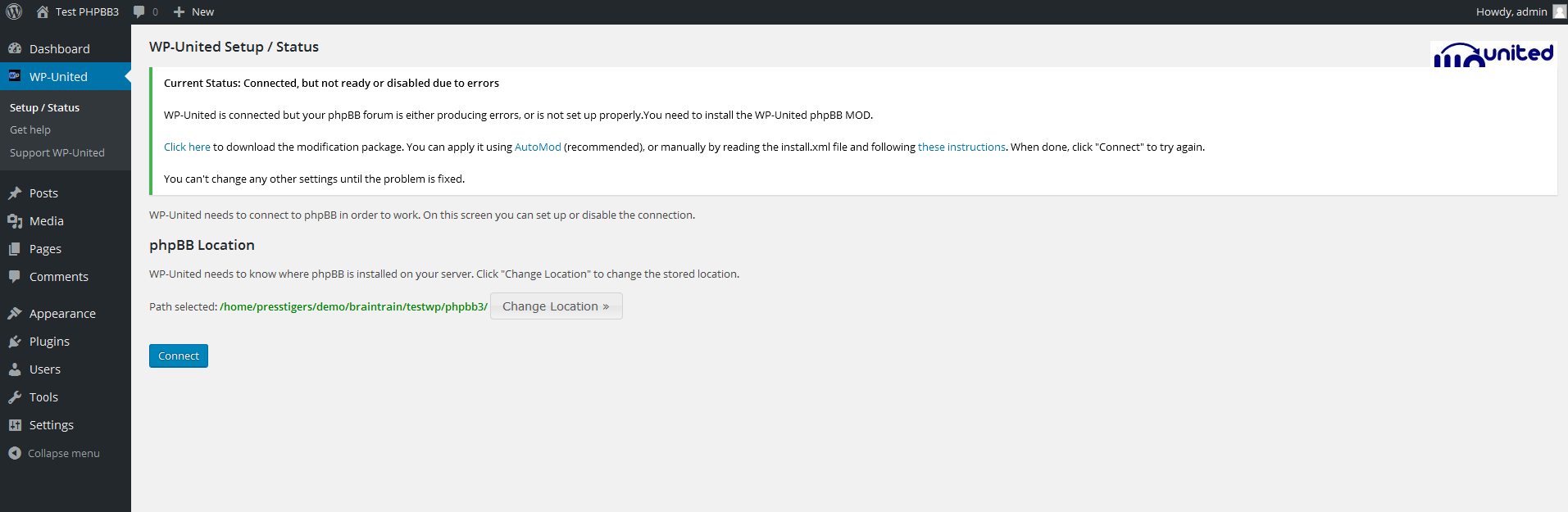

Using WP-United to Integrate WordPress with PHPBB3.0-2

The MOD is installed but not connected yet.

3- You need to modify the functions oriented files (like PHP files) mentioned below to get the MOD activated, using the following manual instructions carefully:

  1. Open includes/functions_content.php file, find function make_clickable($text, $server_url = false, $class = ‘postlink’) line of code and replace it with:
  2. Open memberlist.php file, find the following lines of code:

    Now add the following before the above mentioned lines of code:
  3. Open viewtopic.php file, find the following lines of code:

    Now add the following before the above mentioned lines of code:

    In the same file, find the following lines of code:

    Now add the following before the above mentioned lines of code:
  4. Open includes/functions.php file, find the following lines of code:

    Now put the following after the above mentioned lines of code:
  5. Open includes/functions_user.php file, find function validate_username($username, $allowed_username = false) line of code and replace it with the following:
  6. Open includes/acp/acp_main.php file, find $cache->purge(); line of code and add the following after it:

4- Now, edit the following remaining files to complete the integration:

  1. Open style.php file, find echo $theme[‘theme_data’]; line of code and add the following before it:
  2. Open styles/prosilver/template/overall_header.html file, find <!DOCTYPE html PUBLIC “-//W3C//DTD XHTML 1.0 Strict//EN” “http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd”> line of code and replace it with <!– IF WP_DTD –>{WP_DTD}<!– ELSE –><!DOCTYPE html PUBLIC “-//W3C//DTD XHTML 1.0 Strict//EN” “http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd”><!– ENDIF –>.Now find <title>{SITENAME} &bull; <!– IF S_IN_MCP –>{L_MCP} &bull; <!– ELSEIF S_IN_UCP –>{L_UCP} &bull; <!– ENDIF –>{PAGE_TITLE}</title> line of code and add the following after it:

    Find <script type=”text/javascript”> line of code and add the following before it:

    Find </head> and add the following before it:

    Find <li class=”icon-faq”><a href=”{U_FAQ}” title=”{L_FAQ_EXPLAIN}”>{L_FAQ}</a></li> and add the following after it:
  3. Open styles/prosilver/template/overall_footer.html file, find <!– IF TRANSLATION_INFO –><br />{TRANSLATION_INFO}<!– ENDIF → line of code and add the following after it:
  4. Open styles/prosilver/template/memberlist_view.html file, find the following lines of code:

    Now add the following after the above mentioned lines of code:
  5. Open styles/prosilver/template/viewtopic_body.html file, find the following lines of code:

    Now add the following after the above mentioned lines of code:
  6. Open styles/prosilver/template/editor.js file, find document.write(‘<td bgcolor=”#’ + color + ‘” style=”width: ‘ + width + ‘px; height: ‘ + height + ‘px;”>’); line of code and replace it with document.write(‘<td bgcolor=”#’ + color + ‘” style=”width: ‘ + width + ‘px; height: ‘ + height + ‘px; background-color: #’ + color + ‘;”>’);.Note: Make this alteration only if you are using template integration because it is done for the compatibility of PHPBB forum with default WordPress template.
  7. Open styles/prosilver/theme/common.css file, find the following lines of code:

    Now replace it with the following:

    In the same file, find #site-description { line of code and add the following after it:

5- Go to WP-United Admin Dashboard, refresh it and then click on Connect button. You are done as WordPress and PHPBB 3.0 are integrated now.

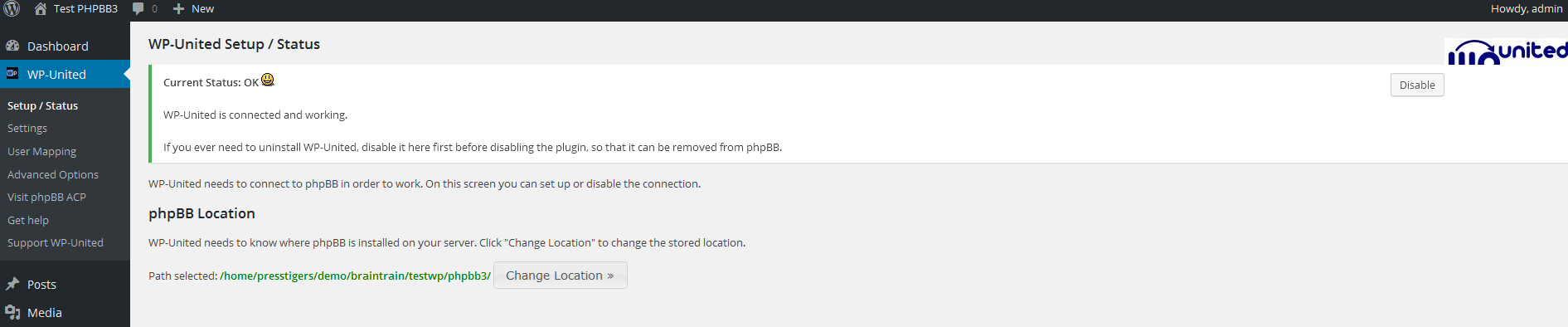

Using WP-United to Integrate WordPress with PHPBB3.0-3

6- Before doing any testing, complete the steps mentioned below:

  1. Remove PHPBB cache. For this, go to phpbb_root_dir/cache/ folder and delete all the files.
  2. Open phpbb_root_dir/rokbb3.php file and find the following code on line number 153:

    Now wrap the function deceleration with the following code:
  3. Now try to login from WordPress and check that a login session has been created automatically or not while navigating towards PHPBB forum in PHPBB forum.
  4. Similarly try to login from PHPBB forum and check that a login session has been created automatically or not while navigating towards WordPress in WordPress.
  5. If you get an error message like:

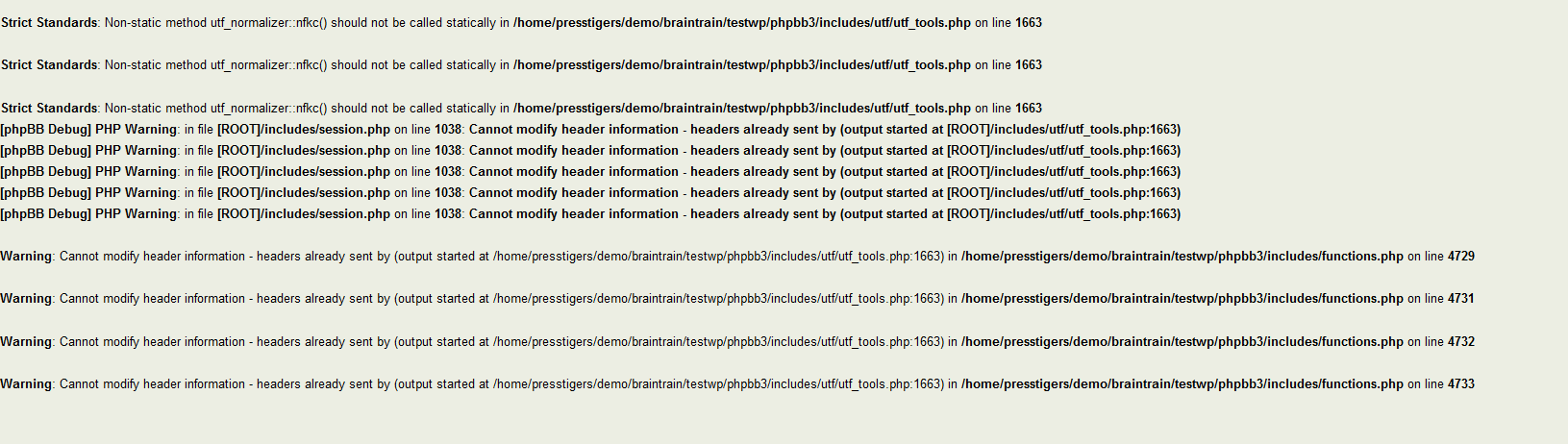

    Using WP-United to Integrate WordPress with PHPBB3.0-4 You need to remove this error. For this, open phpbb_root_dir/includes /startup.php file and find the following code in line number 22:

    Now replace it with error_reporting(E_ALL & ~E_NOTICE & ~E_DEPRECATED & ~E_STRICT); code. If you have activated a different theme in your PHPBB forum rather than prosilver, then repeat the same steps with the activated theme as you  have done with prosilver.

7- In case of any error, make sure that your PHPBB Server Settings (especially “script path“) and WordPress Settings are correct. After that, try re-installing.

If you are getting blank pages, turn on PHP error reporting or look into your Server log so that you can find the underlying cause of problem that persists.
